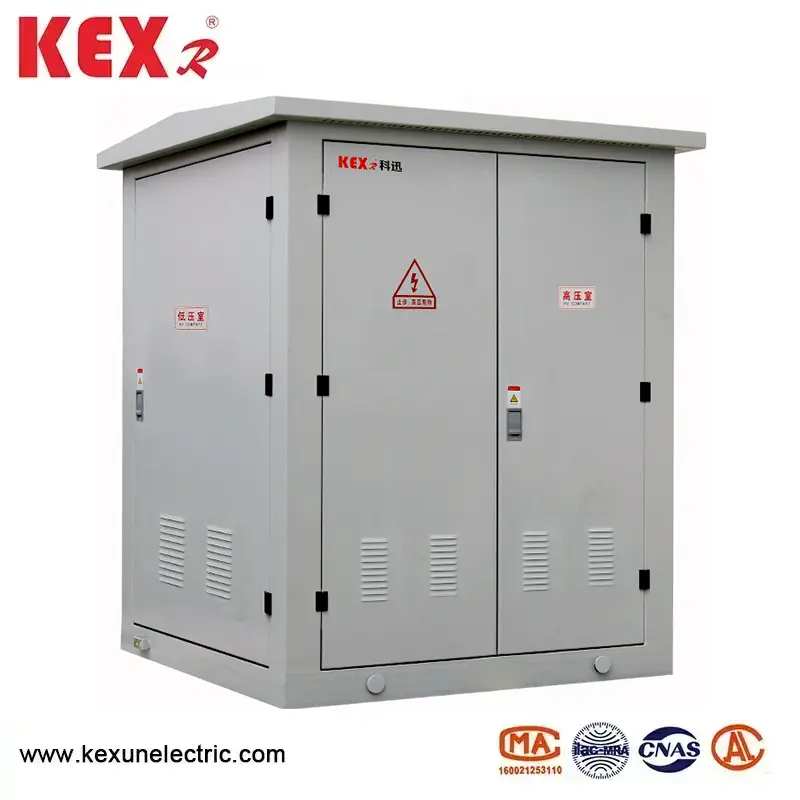

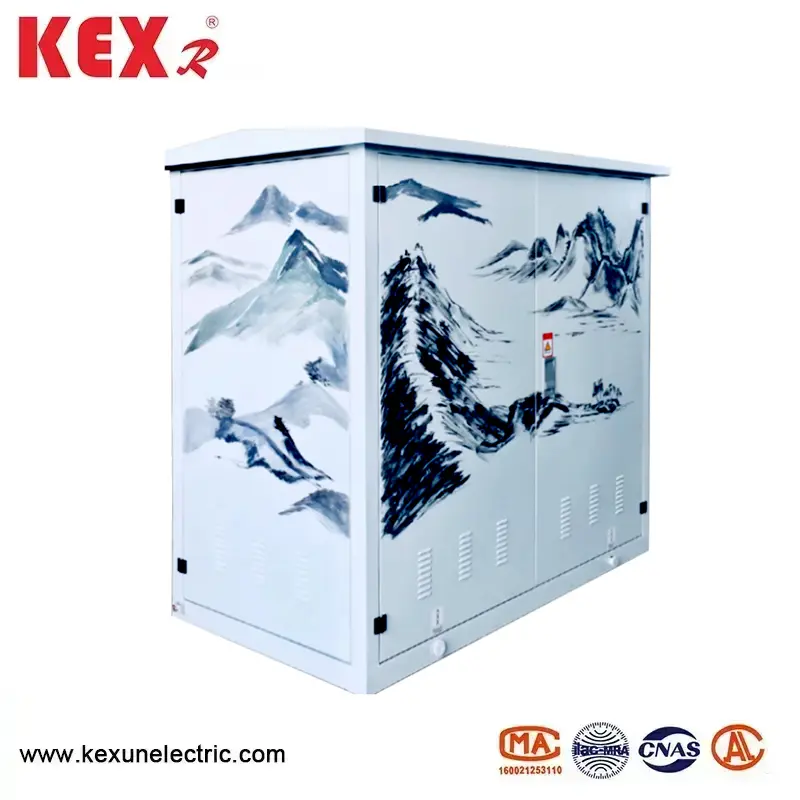

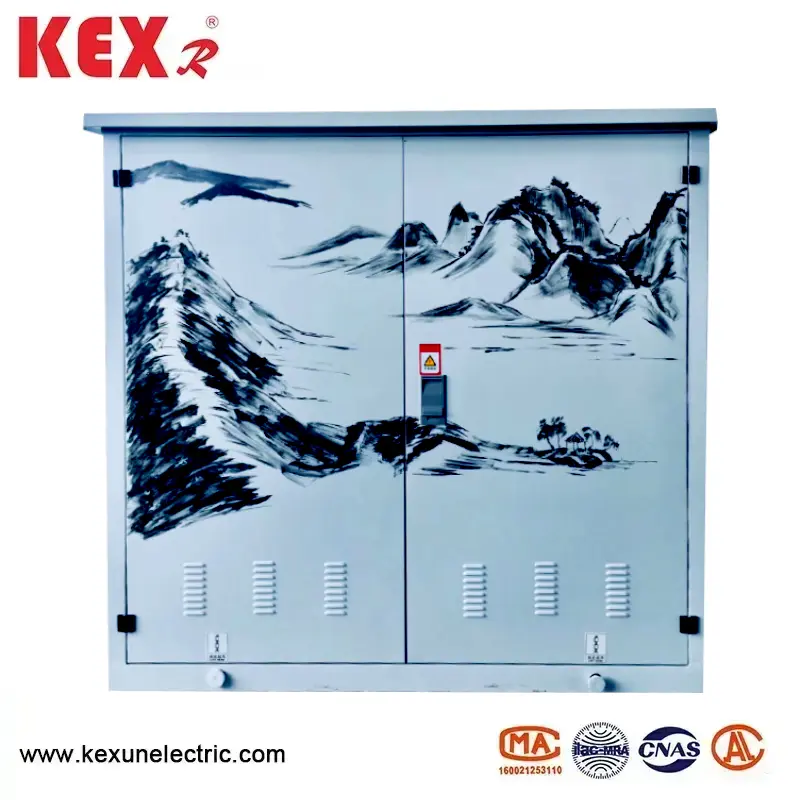

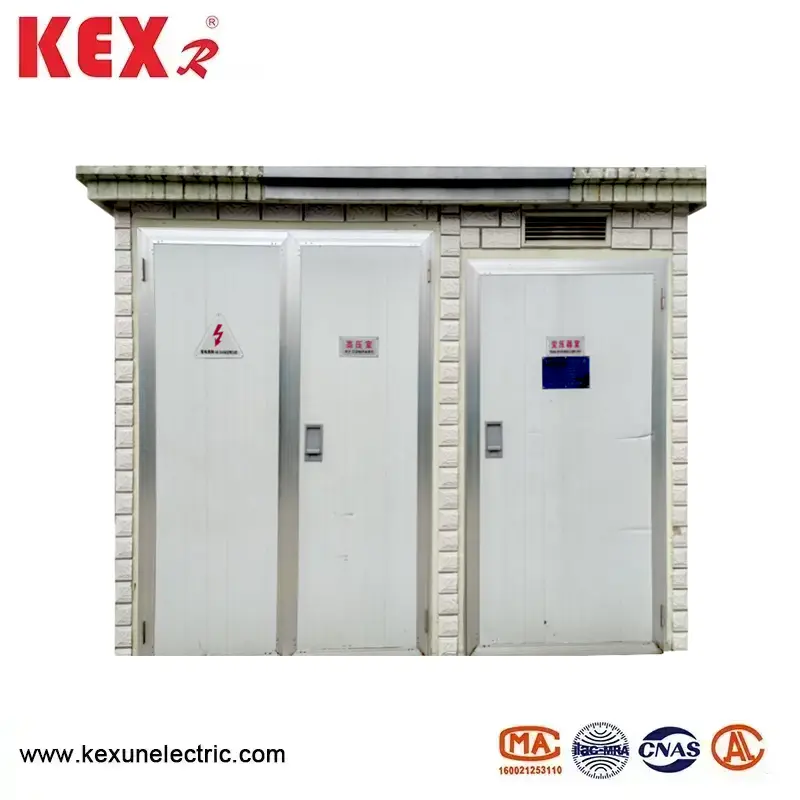

3位相パッドマウント変電所

中国の専門的な送電および流通サプライヤーであるKexRによって生産された3期のパッドマウント変電所は、都市の電器分布、工業団地、新しいエネルギー（太陽光発電/風力発電）およびその他のシナリオに適したコンパクトでモジュラー電力機器です。従来の変電所と比較して、インストールがより小さく柔軟です。
モデル：YB-12
ブランド：Kexr

お問い合わせを送信

製品説明

● Product overview

3phase pad-mounted substation is more flexible and convenient to use than civil substations, and is widely used in urban network reconstruction of high-rise buildings, residential quarters, industrial parks, commercial centers, airports, railway terminals, schools, a mining enterprise and other places.

● Functions and characteristics of YB-12 type 3phase pad-mounted substation

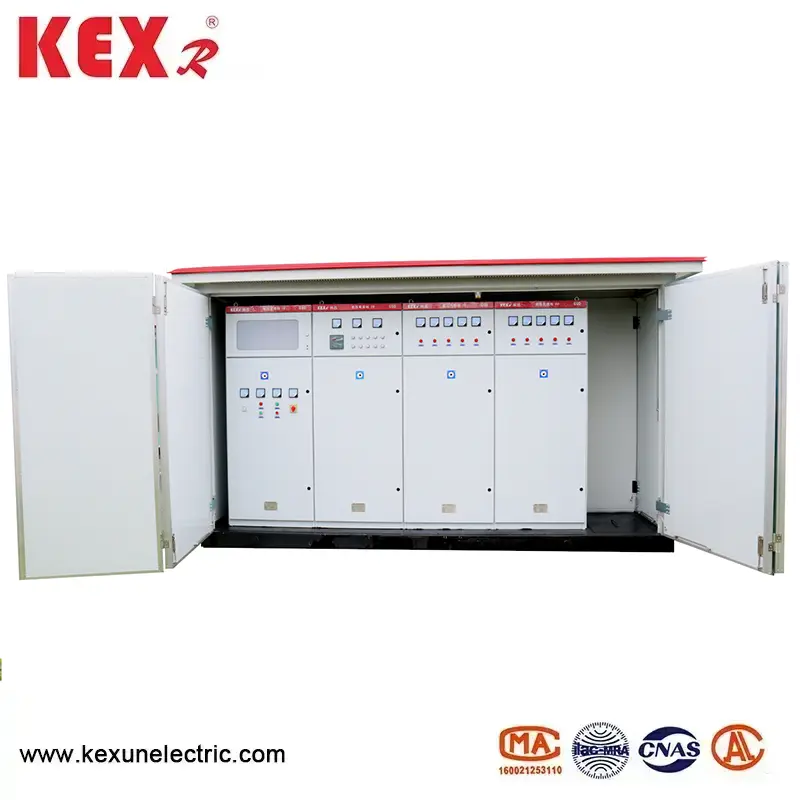

Pad-mounted substation high-voltage chamber is composed of high-voltage load switch, high-voltage fuse and lightning arrester, which can stop power transmission and prevent overload and short circuit at the same time; The low-voltage chamber is composed of low-voltage air switch, current transformer, ammeter and voltmeter. 3phase pad-mounted substation has advanced and reliable technology, and the boxes all adopt advanced processing technology, which has good corrosion resistance and wear resistance. It has the advantages of flexible combination, convenient transportation, installation and construction, low cost, no pollution and safe and reliable operation.

● Using conditions

◆ The altitude does not exceed 4000m

◆ Ambient temperature:-25℃-40℃

◆ Relative humidity: the daily average value is not more than 95%, and the monthly average value is not more than 90%

◆ Installation place: a place without fire, explosion danger, conductive dust, chemical corrosive gas and violent vibration.

Note：If the above conditions are exceeded, users can negotiate with KEXR

● Performance parameter tables

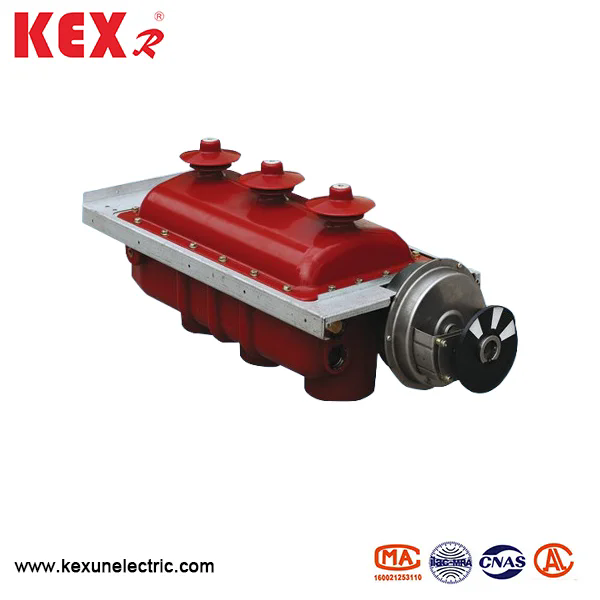

◆ Technical parameters of load switch

Serial Number	Item	Unit	FN12-12	FN25-12 Vacuum load switch
1	Rated voltage	kV	10
2	Max operating voltage	kV	12
3	Rated frequency	Hz	50
4	Rated current	A	630
5	Rated breaking load current	A	630
6	Thermal stable current	kA/S	20/2	20/4
7	Dynamic stable current	kA	50
8	Short circuit closing current （peak value）	kA	50
9	Full load breaking times	Time	20	10000
10	Mechanical life	Time	2000	10000
11	1Min power frequency withstand voltage (phase to ground)	kV	42
12	Lightning impulse voltage(phase to ground)	kV	72

◆Technical parameters of High voltage fuse

Serial Number		Rated voltage (kV)	Rated current (A)	Break current (A)	Fuse rated current (A)
UK model	CN model	Rated voltage (kV)	Rated current (A)	Break current (A)	Fuse rated current (A)
SDL❈J	XRNT-12	12	40	31.5	6.3, 10, 16, 20, 25, 31.5, 40
SFL❈J		12	100	31.5	50, 63, 71, 80, 100
SKL❈J		12	125	31.5	25

◆Technical parameters of Low voltage circuit breaker

Model	Release form	Release rated current	On-off ability kA(AC 380V)
DW15-630	Thermoelectromagnetic type	315, 400, 630	40
DW15-1000	Thermoelectron type	630, 800, 1000	50
DW15-1600		1600	50
DW15-2500		1600, 2000, 2500	60
CW1-2000	Intelligent type	630, 800, 1000, 1250, 1600, 2000	65(80)
CW1-3200	Intelligent type	2000, 2500, 3200	100
